How to set up a Bitcoin Node with Umbrel on a Raspberry Pi 5

March 18, 2024

Why run your own bitcoin node?

For bitcoin to function reliably and securely, it relies on the voluntary participation of thousands of individuals worldwide. Nodes, which make up the bitcoin network and verify transactions and blocks, are crucial to this process. There are many reasons to consider running your own bitcoin node, including personal benefits and the benefits to the security and resilience of the bitcoin ecosystem. The following article explains some reasons to run your own bitcoin node:

Reasons to run your own Bitcoin node

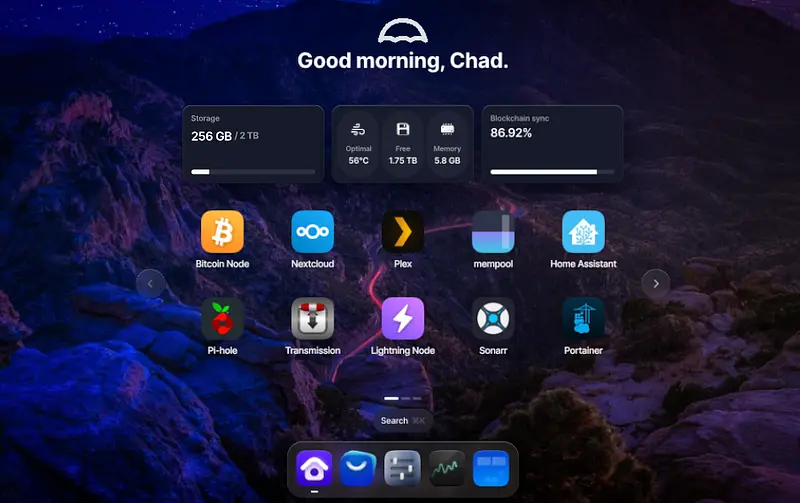

What’s Umbrel?

Umbrel is a beautiful personal server OS for self-hosting. You can run a personal server in your home, self-host open source apps like Nextcloud and Bitcoin node, break away from big tech, and take full control of your data for free. Umbrel can be installed on a Raspberry Pi 5 or any Ubuntu/Debian system.

How to set up a Bitcoin Node?

To set up a Bitcoin Node with Umbrel on a Raspberry Pi 5, you need to follow the following steps:

Step 1: Buy the parts

You will need to buy the following parts. You can buy them using the Amazon affiliate links in this article to support us.

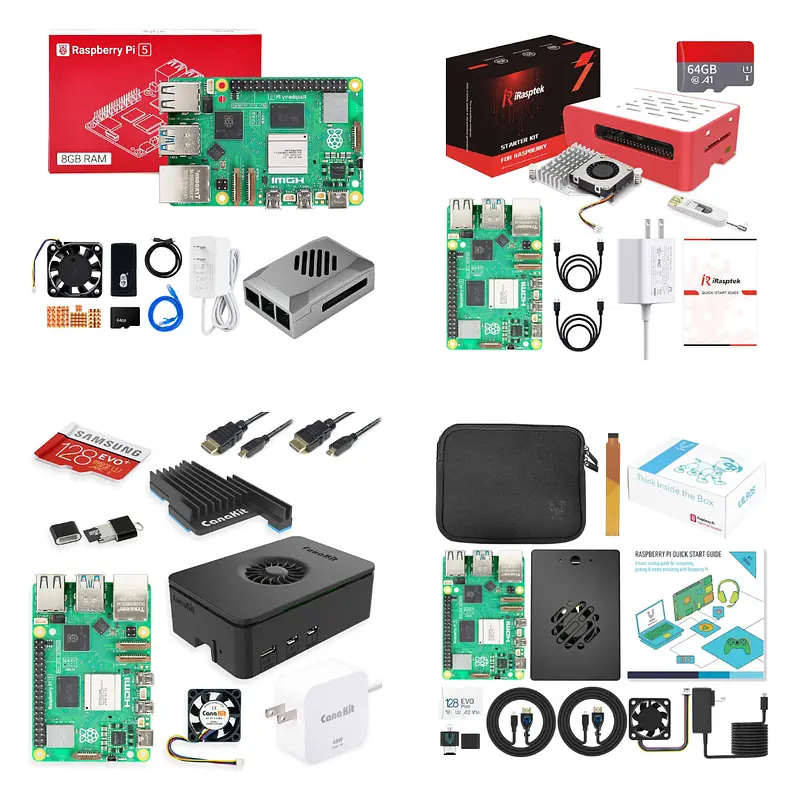

Starter Kit: Raspberry Pi 5 + Case + Power Adapter

Pick a Raspberry Pi 5 with 8 GB RAM for maximum performance.

Some good options on Amazon:

Some good options on AliExpress:

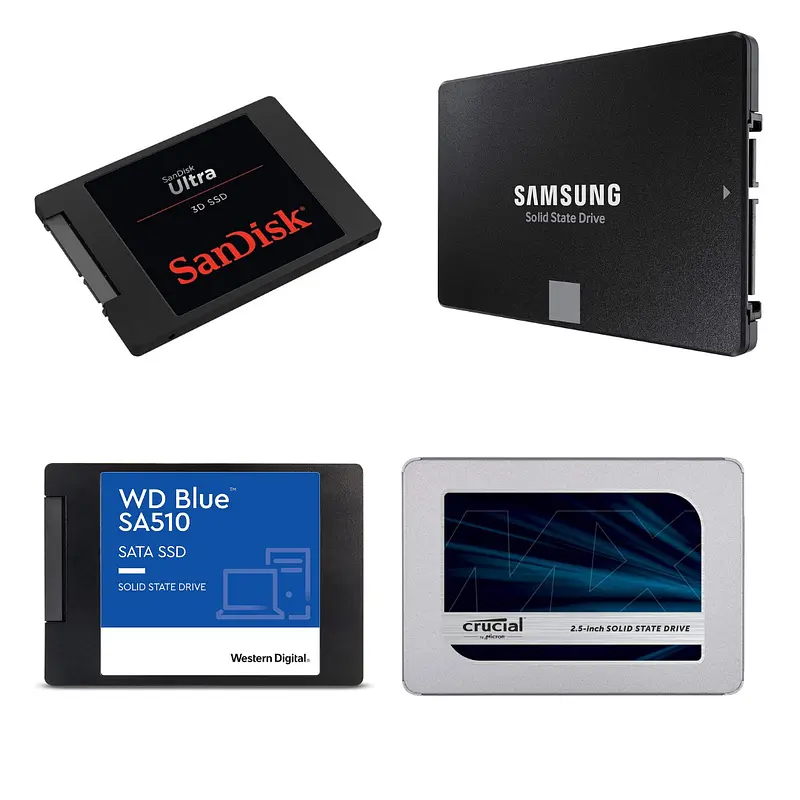

Storage Drive

2 TB or more is recommended.

Some good options on Amazon:

Some good options on AliExpress:

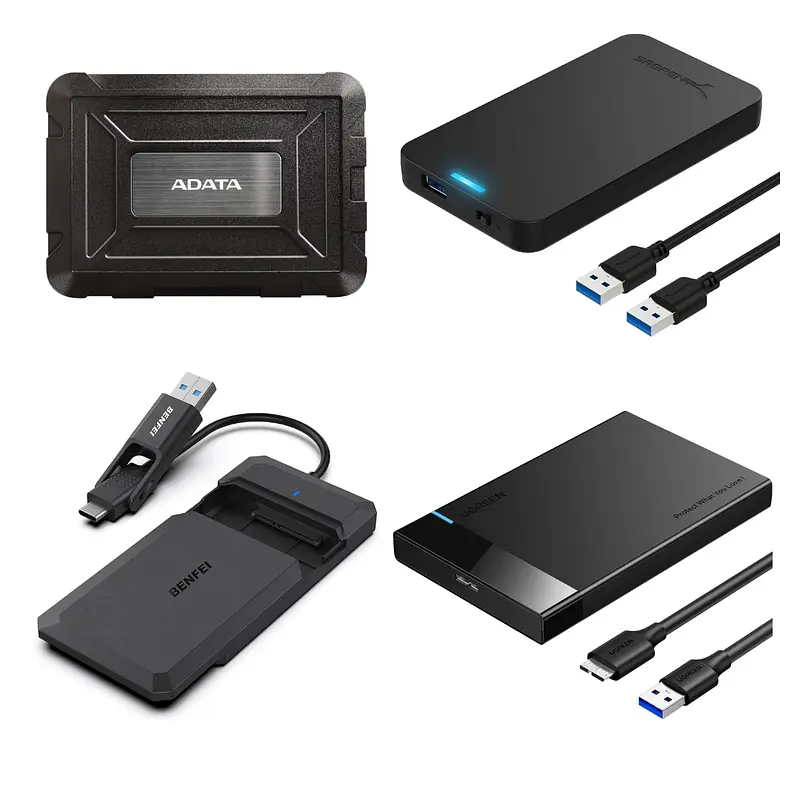

Storage Drive’s Enclosure

To connect the storage drive to the Raspberry Pi via USB.

Some good options on Amazon:

Some good options on AliExpress:

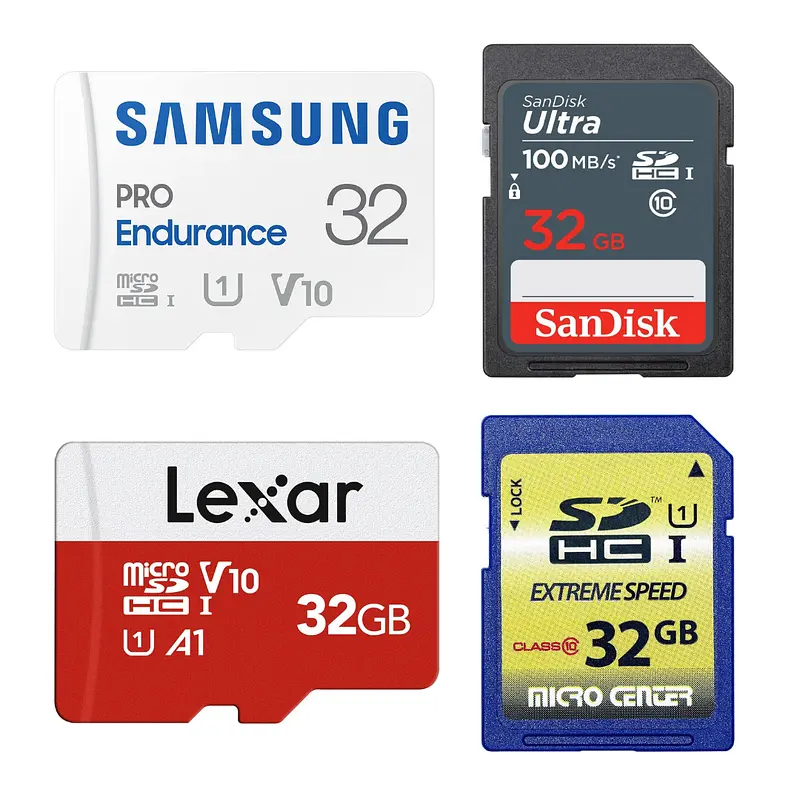

microSD card

The microSD card is only used to run the firmware. All of your apps and data are stored on the storage drive. You will need a 32GB+ microSD.

Some good options on Amazon:

Some good options on AliExpress:

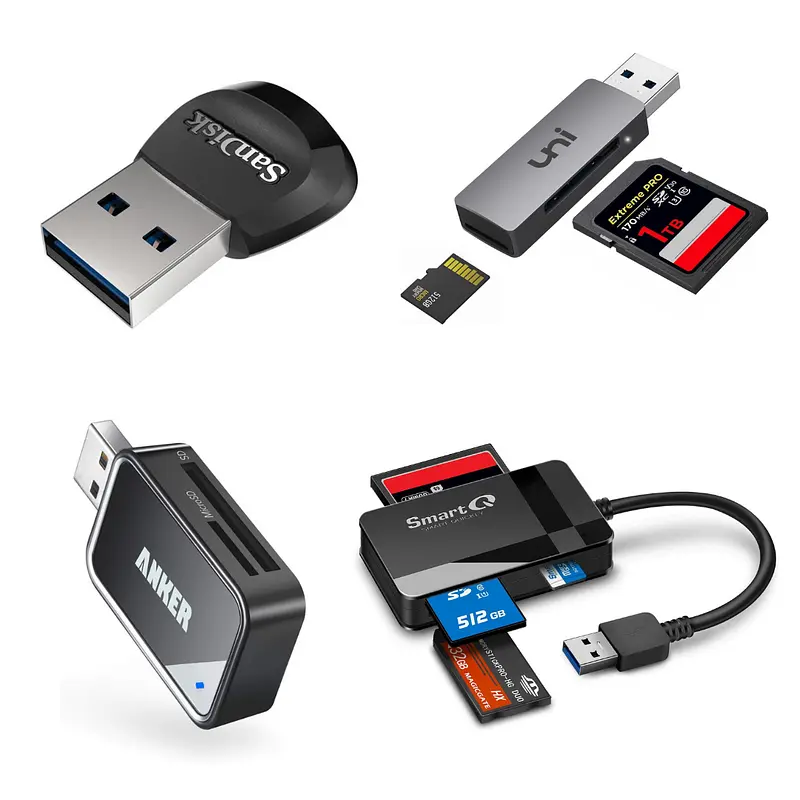

MicroSD Adapter (Optional)

You will need to buy an adapter if your computer doesn’t have a MicroSD slot.

Some good options on Amazon:

Some good options on AliExpress:

Ethernet Cable(Optional)

You can connect your Raspberry Pi to the internet using Wifi or Ethernet. If you choose Ethernet, you will need an Ethernet cable to connect to your router.

Some good options on Amazon:

Some good options on AliExpress:

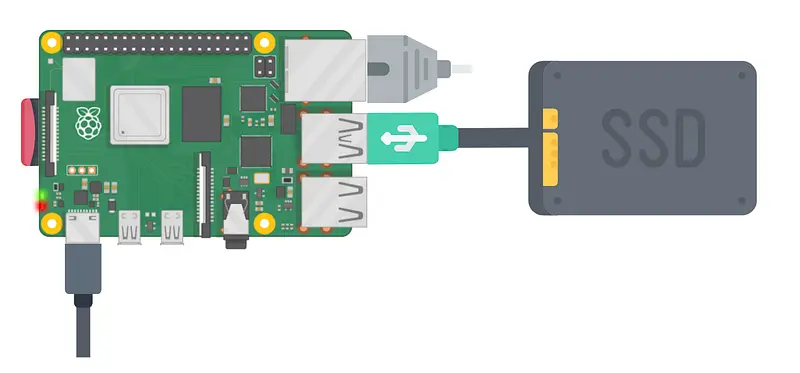

Step 2: Assemble the Node

Assembling the node is pretty easy. You just need to:

Put the Raspberry in its case
Put the storage drive in its enclosure
Connect the storage drive into any of the two USB 3.0 ports (blue colored) on the Raspberry Pi
Connect the Raspberry to your router using the ethernet cable
Connect the power supply to the Raspberry. DON’T CONNECT THE POWER SUPPLY TO THE POWER YET

Step 3: Download Umbrel OS

Download Umbrel OS for Raspberry Pi on your computer, using the following link:

https://download.umbrel.com/release/latest/umbrelos-pi5.img.zip

Step 4. Download Balena Etcher

Download and install Balena Etcher on your computer. It is required to flash the Umbrel OS file that you downloaded in the previous step onto the microSD card.

balenaEtcher — Flash OS images to SD cards & USB drives

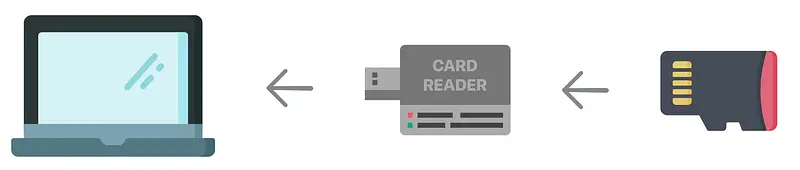

Step 5. Plug the microSD card into your computer

You might need a card reader if your computer doesn’t have one. Here’s a good one on Amazon.

Step 6. Flash Umbrel OS

Open Balena Etcher and flash the downloaded Umbrel OS zip file on the microSD card. You need to follow these steps:

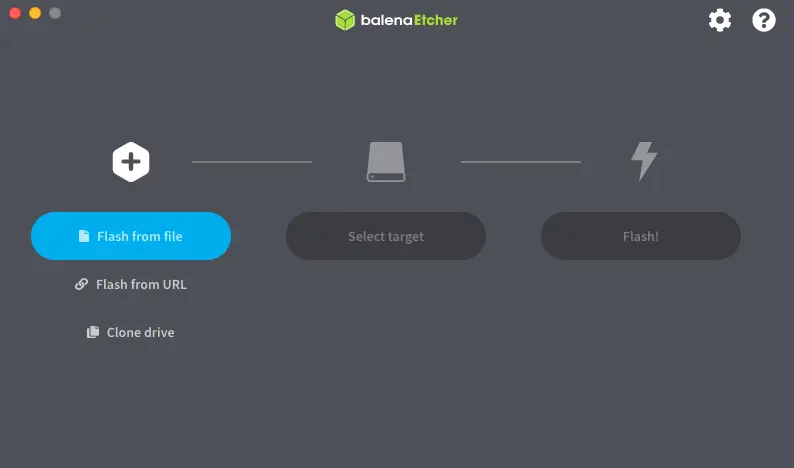

Pick the Flash from file option

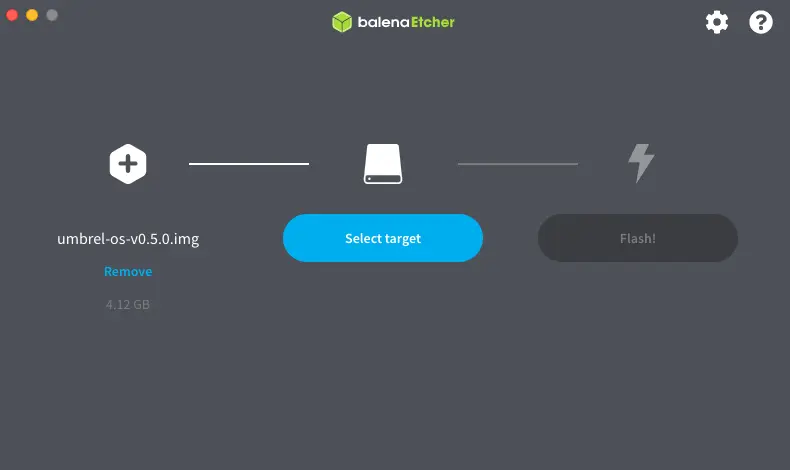

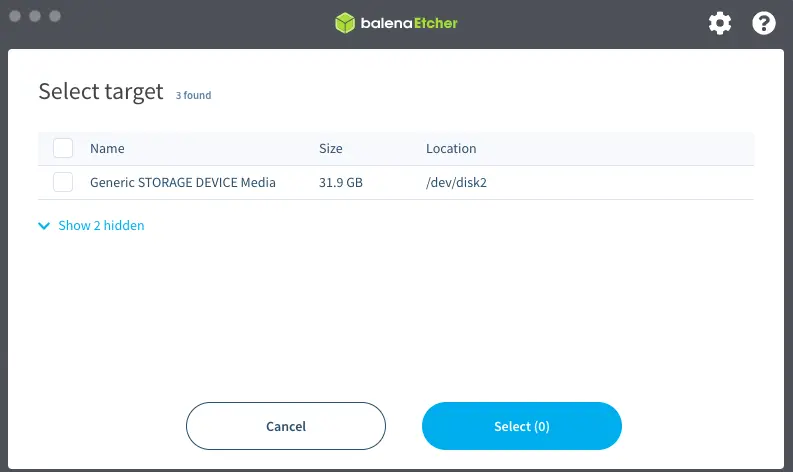

Pick theSelect Target option

Check the SD Card and click on Select

Click on the Flashoption

When finished, you will see a Flash Complete legend.

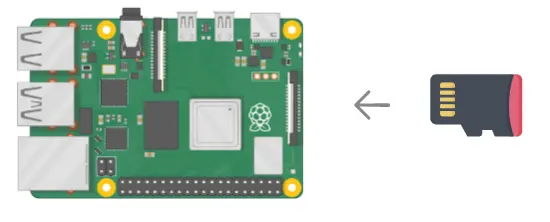

Step 7. Insert the microSD card into the Raspberry

After the flash is successful, remove the microSD card from your computer and insert it into the Raspberry Pi.

Step 8. Power up

Power up the Raspberry Pi to turn it on.

Any existing data on the SSD will automatically be deleted when you turn on the Raspberry Pi.

Step 9. Wait until Umbrel is accesible

After 5 minutes, your Umbrel will be accessible at http://umbrel.local on any device that’s connected to the same network as the Raspberry Pi. If you can’t access your Umbrel, you can use Angry IP Scanner to find the IP address of your Umbrel and type that in the browser instead of umbrel.local. If you’re using Windows, try accessing http://umbrel in the browser. And if you’re using a VPN, try turning it off.

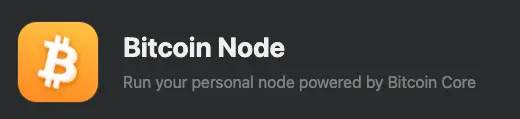

Step 10. Download the Bitcoin Node app

Go to the Umbrel App Store and download the Bitcoin Node app.

This app will transform your Umbrel into a Bitcoin node. It will automatically start to download the blockchain. Take into account that this will take several days.

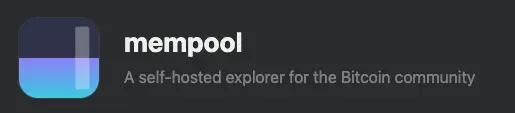

Step 11. Download the mempool app

Go to the Umbrel App Store and download the mempool app.

This is the private replacement of https://mempool.space/. Now you will be able to explore the blockchain using the information of your node, without depending on any third-party server.
